Matihe Bridge
马蹄河特大桥
Dejiang, Guizhou, China
574 feet high / 175 meters high
591 foot span / 180 meter span
2015

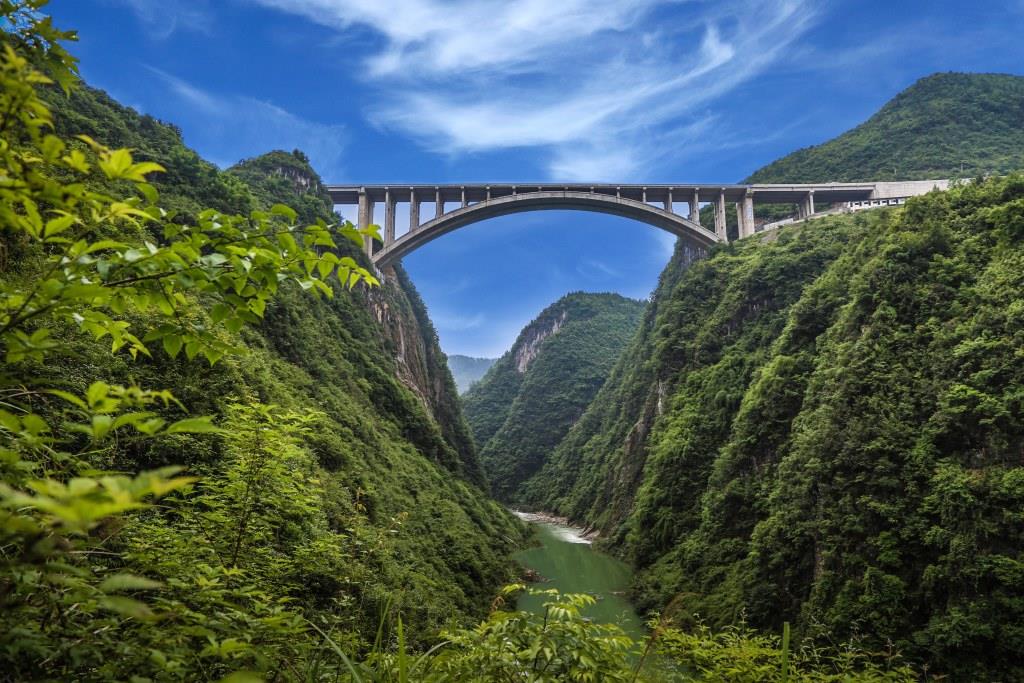

Leaping across an abyss-like section of the Mati River, this 180 meter reinforced concrete arch is one of the highest spans in northeast Guizhou Province. The sharp dropoff in the terrain has resulted in a bridge with a total length of just 327.6 meters long. The arch has a rise of 32 meters for a span to rise ratio of 5.6 to 1. The main arch ribs are 7.5 meters wide and 3.3 meters thick. The clear width of the roadway is 29.625 meters.

Matihe Bridge is located along the S25 Expressway in Dejiang County, Guizhou Province.



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com


Matihe 20151113.jpg






Matihe 20150403.jpg























Matihe Bridge satellite image.







Matihe Bridge location map.
