Jinghe Dongzhuang Dam Bridge
东庄水利枢纽泾河大桥
Yanxiazhen, Shaanxi, China
(656) feet high / (200) meters high
722 foot span / 220 meter span
2024

Dongzhuang Dam Jinghe Bridge.jpg

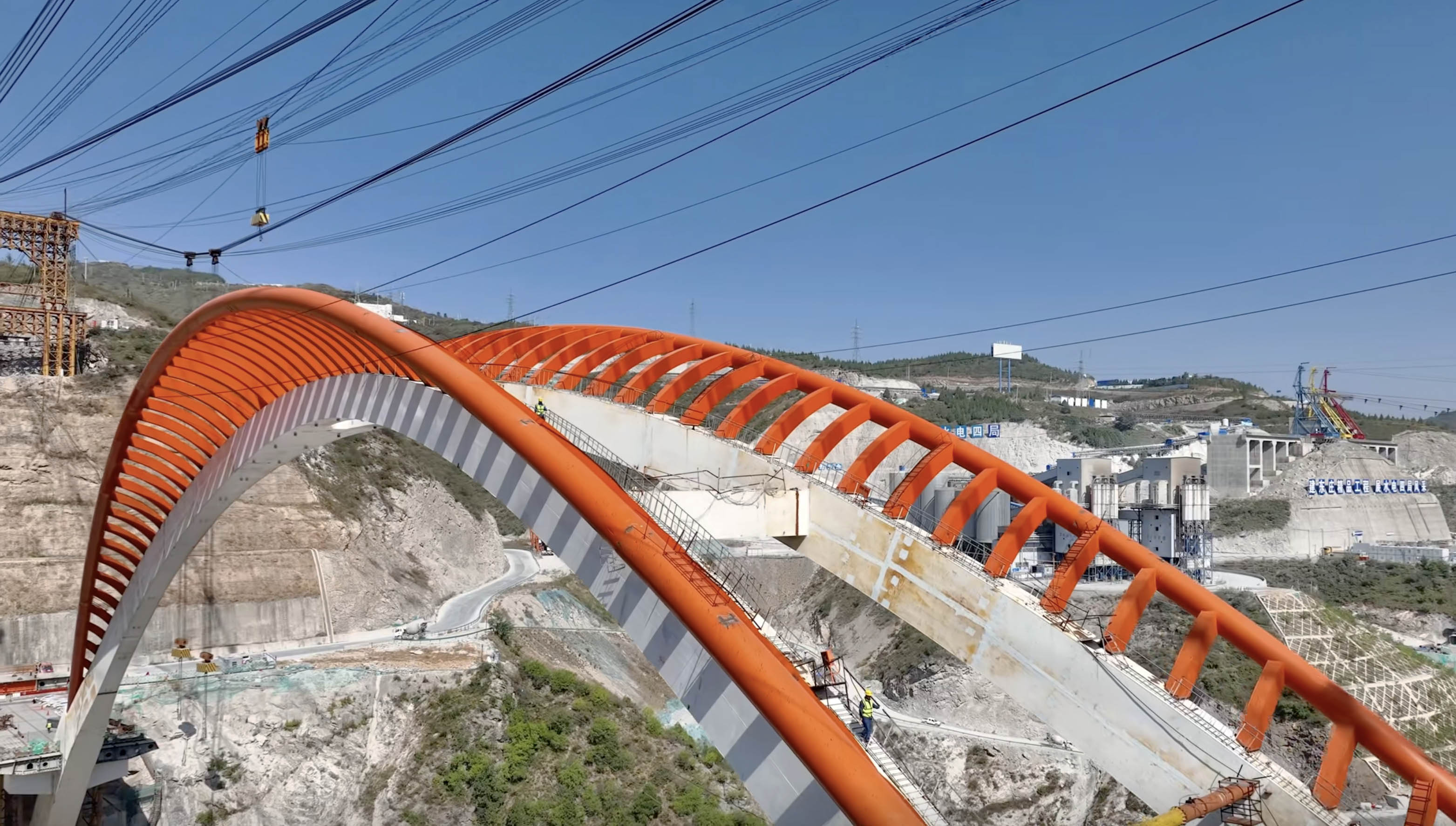

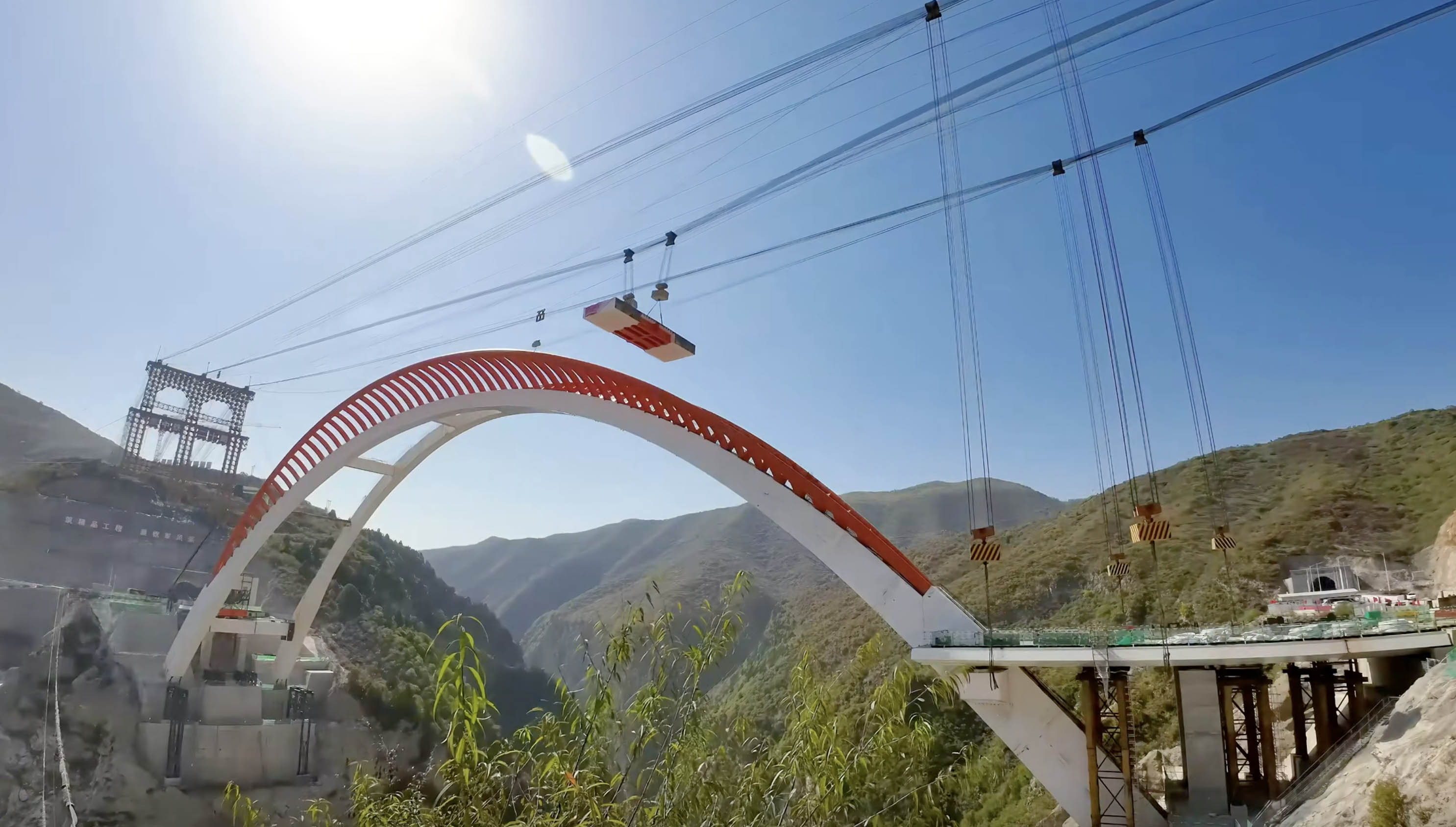

One of the highest and most beautiful spans in all of Northern China, the Jinghe Dongzhuang Dam Bridge is a 2-lane, Y-shaped steel through arch with pedestrian walkways on both sides of the bridge.

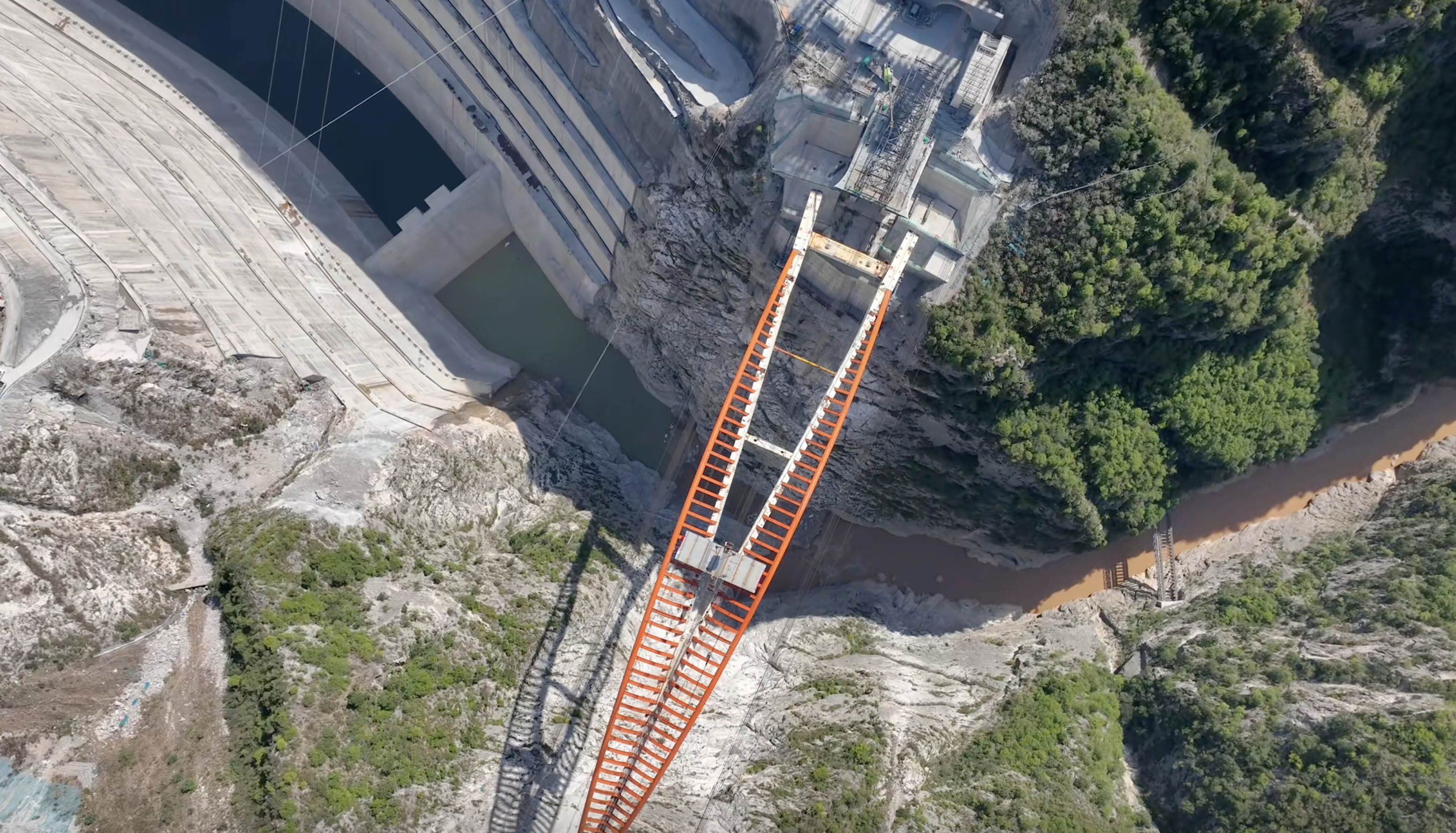

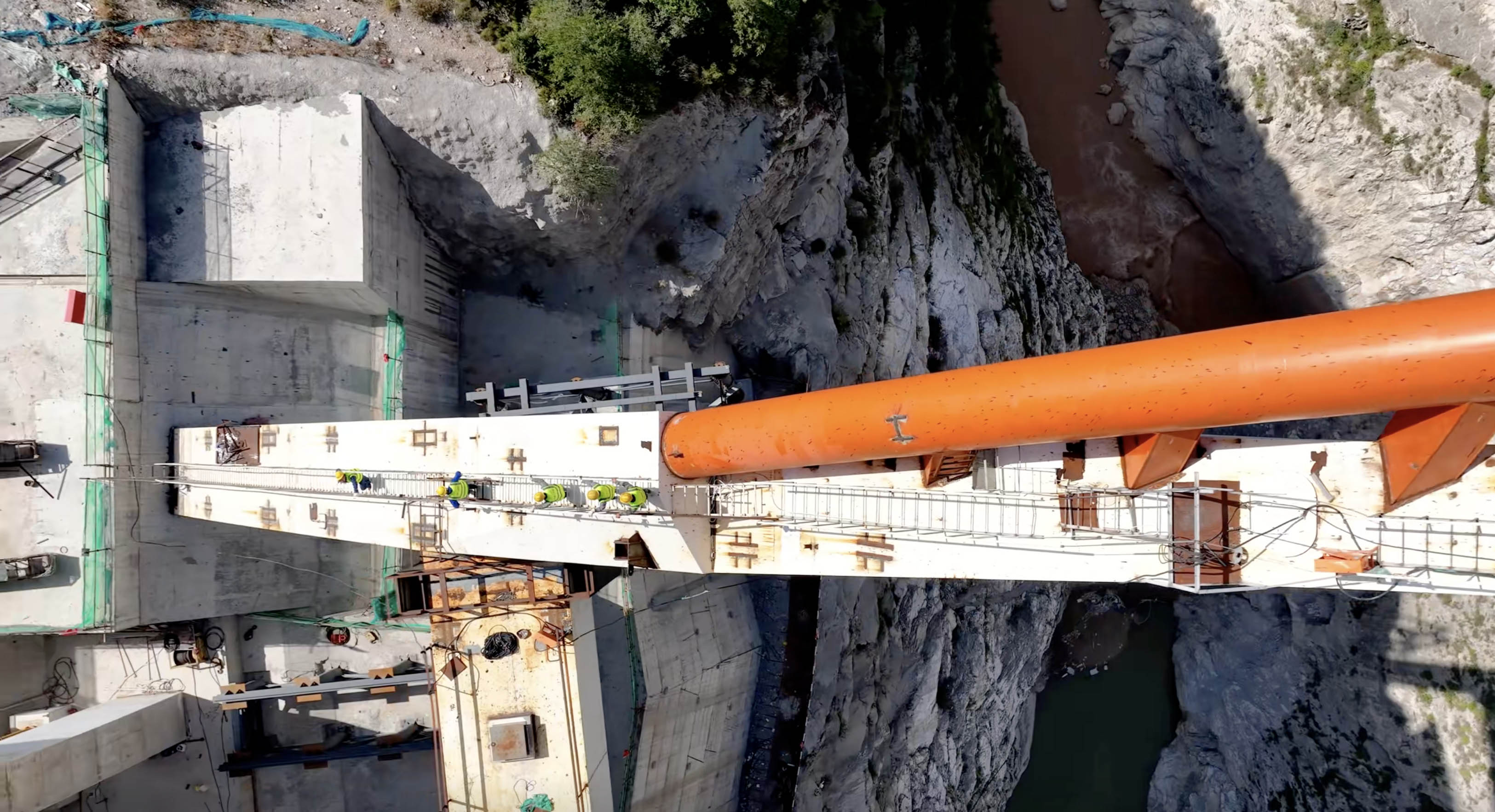

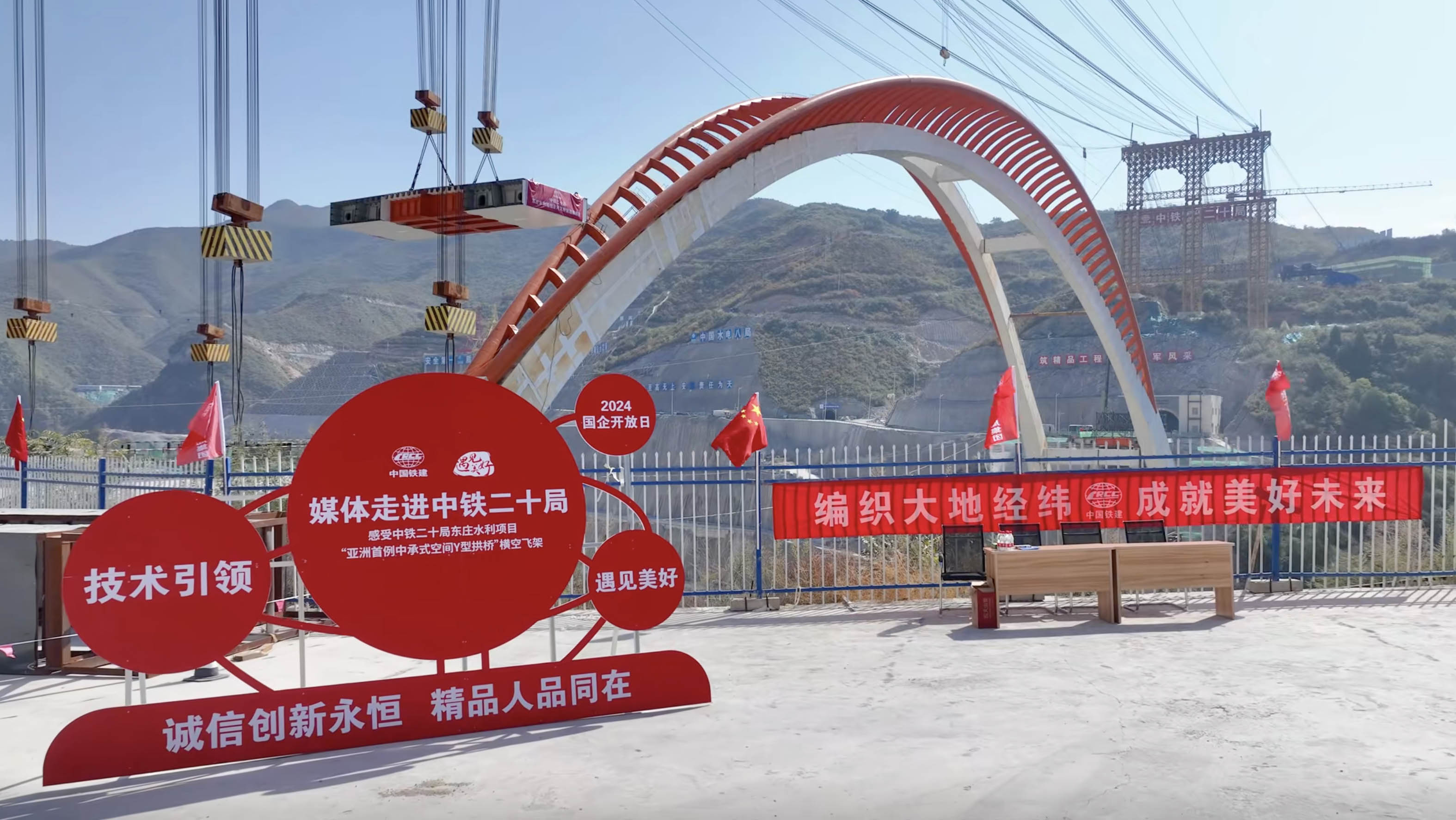

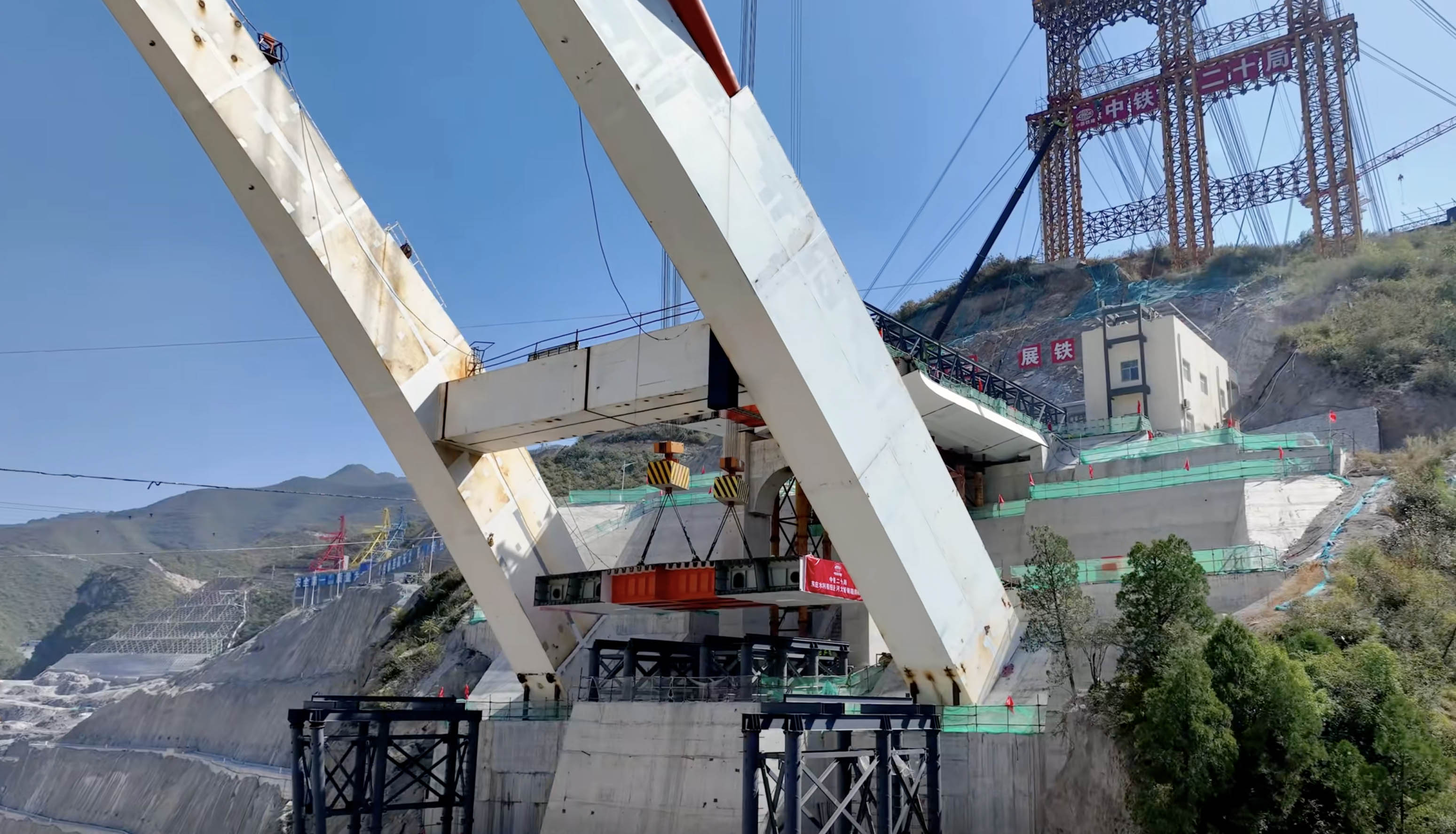

The 284 meter long Jinghe Dongzhuang Dam Bridge has a span configuration of 19.5+220+19.5 meters and a width that varies between 18 and 36 meters. The converging nature of the two arch ribs results in the deck suspender cables going from a pair on both sides of the outer edge on the south end of the span to just one centerline row of suspender cables on the north end. There is a visitors center and parking area on the north side of the bridge.


Dongzhuang Dam Jinghe Bridge top.jpg





A previous arch design with a main span of 193 meters.


Dongzhuang old design.jpg

Another previous design.










Jinghe DongzhuangFootbridgeDrone.jpg

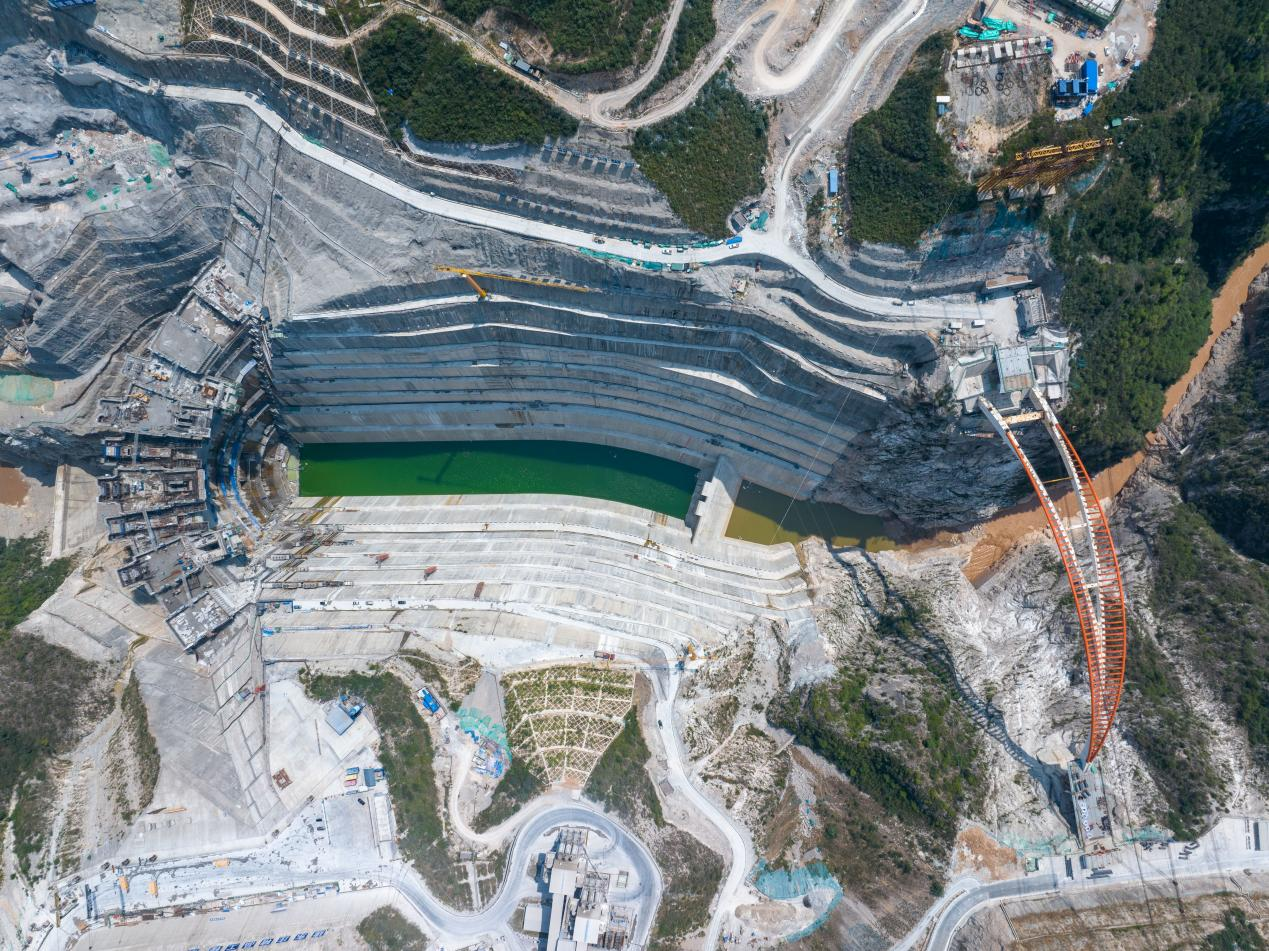

Access paths have been cut into the cliffs for the preparation of the dam.







A temporary Jinghe Dongzhuang Dam Footbridge 200 meters high was completed in 2011.










Jinghe Dongzhuang Dam14.jpg


Jinghe Dongzhuang Dam13.jpg


Jinghe Dongzhuang Dam11.jpg


Jinghe Dongzhuang Dam10.jpg







Jinghe Dongzhuang Dam Bridge satellite image.




Jinghe Dongzhuang Dam BridgeSatelliteWide.jpg





Jinghe Dongzhuang Dam Bridge location map.
